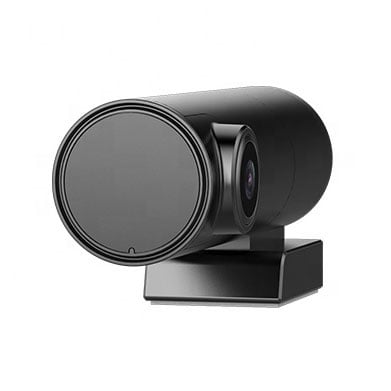

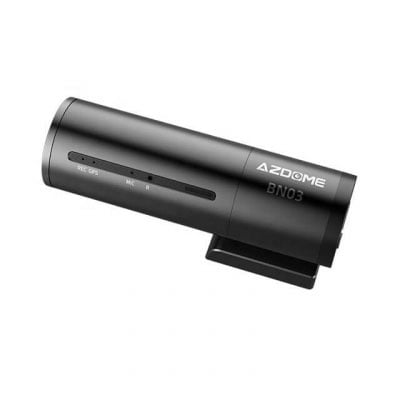

The AZDome BN03 is the latest cylindrical dashcam model from AZDome with all the features you could want. Wifi, GPS, Automatic Time Lapse parking mode and Night vision through the Sony Starvis image sensor. Everything is packed into this very stylish dashcam that is barely noticeable to the driver and from the outside, which is why almost every AZDome BN03 review is positive.
Note: We do not recommend changing the name and password of the Wifi as this can cause problems with the connection.
The BN03 2K Wifi GPS dashcam films with very high-quality 2K 1440p resolution in 30fps or FullHD 1080p in 30fps and delivers outstanding performance, especially in the dark. The 3.0 Megapixel Sony Starvis sensor in this dashcam guarantees crystal-clear videos, even at night.

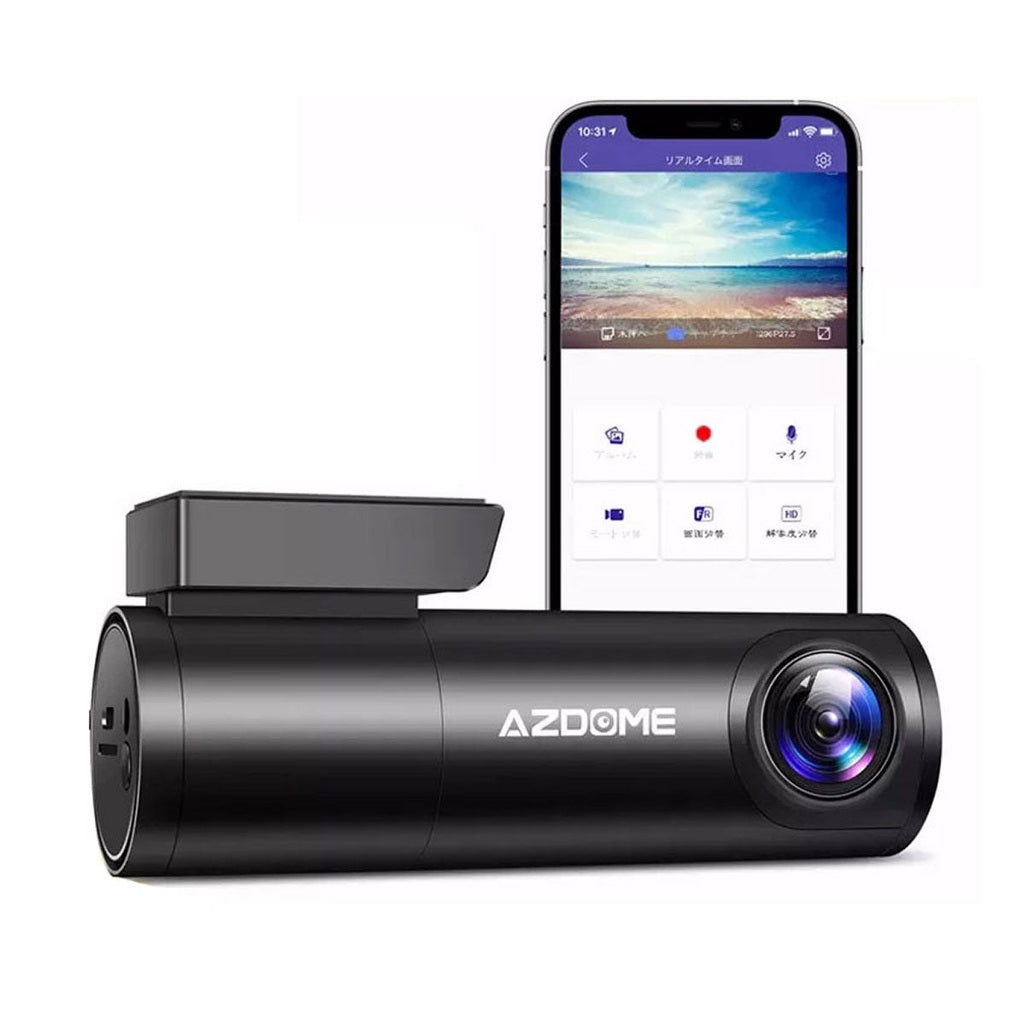

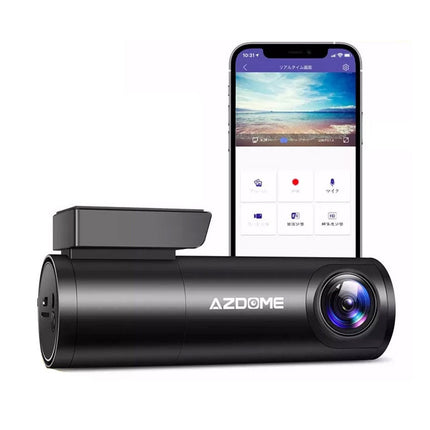

The BN03 Wifi GPS dashcam is equipped with 2.4 and 5.0 GHz Dual-Band Wifi. Because this dashcam 2K Wifi GPS is equipped with wifi, all images can be easily viewed via smartphone. The Wifi has a range of about 10 metres. The AZDome App is available for iOS (Apple) and Android phones and tablets. Via the app, images can be viewed and downloaded, eliminating the need to remove the SD card from the camera.
This dashcam has a convenient automatic Time Lapse parking mode function to secure the car when parked. In this Time Lapse mode, the camera takes a picture every second and later plays it back as a video. This has a distinctive character that makes it appear to be flushed. With Time Lapse mode, the videos do not take up too much space and can therefore be recorded for a very long time without filling up the SD card. Combined with the Continuous power supply, the parking mode automatically switches on when the car ignition is turned off and normal recording starts again when the car is started.
Note: To use the automatic parking mode, the AZDome Continuous Power Supply Micro USB is required, parking mode cannot be switched on and off manually.
The BN03 Wifi GPS dashcam can be expanded with the BN03 rear camera with IMX307 sensor. This rear camera mounts on the rear window of the car and records in FullHD 1080p 30fps. The rear camera is connected to the front dashcam with a long cable (6 metres). No additional power supply is required for the camera. Footage from both cameras is stored separately on the SD card.
The standard rear camera is not waterproof and therefore cannot be placed outside on the vehicle. However, the BN03 also works with the waterproof AZDome FullHD rear camera. For longer vehicles, a 10m extension cable is optionally available.
The BN03 Wifi GPS dashcam has a built-in GPS module. This GPS module allows the speed to be displayed on screen and also keeps track of the coordinates of the places filmed. This allows you to later use the supplied software to see exactly where certain recordings were made.
The body of the BN03 Wifi GPS dashcam can be rotated by 90 degrees, ensuring that it always faces the road.
The BN03 Wifi GPS dashcam comes with a handy separate 3M holder that is attached to the windscreen with the 3M double-sided sticker. The camera can be removed from the holder and reinserted in one sliding movement. This makes it easy to remove the dashcam from the car.
This BN03 Wifi GPS from AZDome saves super sharp video footage to the SD card with the latest H.265 HEVC (High Efficiency Video Coding). In short, this means the dashcam uses less memory than other FullHD dashcams while offering better quality. So the files are of the best quality but do not take up too much memory on the MicroSD card.
The BN03 2K Wifi GPS dashcam supports MicroSD cards up to 128gb, allowing around 24 hours of filming in FullHD.
This BN03 2K Wifi GPS dashcam has a 140-degree wide-angle lens on the front. The optional rear camera also has a 140-degree viewing angle.
The BN03 2K Wifi GPS dashcam automatically starts filming when the car is started and stops filming when the car is turned off. So you don't have to look at it while it's hanging in the car.
With its built-in G-sensor, the dashcam notices when you've had an accident. Upon impact, images are automatically stored securely so they are not lost. They can no longer be overwritten or deleted via the dashcam.
The BN03 2K Wifi GPS dashcam has a built-in microphone so that sound is also recorded. The microphone can also be switched off if required.
The current time and date are always displayed on screen so that the time at which the relevant recordings were made can be shown later.
This AZDome dashcam comes with a handy USB cigarette plug. The plug contains an extra USB port so you can still use the cigarette power supply for other devices.
Found the right dashcam?
Our product finder matches you with the dashcam that suits you and your car in just a few questions.
Install your dashcam yourself?
You can often install a dashcam yourself in around 1 to 1.5 hours. A standard cigarette-lighter installation usually requires no tools.
For the best performance from your dashcam
Add this waterproof Full HD rear camera to record behind the car as well. Includes…
Extension cable for the rear camera to extend the standard 6-metre video cable by 10…
100Wh power bank for using parking mode without draining your car battery. Note: you need…
4.3 /5
Rating
Translated from: Dutch
Translated from: Dutch
Translated from: Dutch
Translated from: Dutch
Translated from: Dutch
Translated from: Dutch
Translated from: Dutch
Translated from: Dutch
Translated from: Dutch
Translated from: Dutch
| Image | |
|---|---|
The number of cameras or “channels” the dashcam uses to film. A 1-channel 1CH dashcam films only the front and a 2CH also has a rear camera. A 3CH has an additional interior camera and a 4CH dashcam often consists of four separate cameras.
|
1CH and 2CH
|
Video resolution indicates how many pixels the videos consist of. Therefore, the higher the resolution, the larger the videos are and the more details can be seen. For example, 4K refers to the number of horizontal pixels (3840) of the video.
|
Full HD and 2K
|
The quality of video at night or in low light conditions is mainly determined by the image sensor used in the dashcam. Some dashcams also have infrared LEDs, but these are mainly effective at short distances for interior cameras, for example.
|
|
Dashcams always have a round “fish eye” lens with a wide viewing angle so that a larger area around the camera is recorded. So a wider viewing angle means you capture more but also results in some distortion at the sides.
|
|
The image sensor used determines the resolution of the videos and is the biggest determinant of dashcam image quality.
|
|
The chip or processor is basically the computer or brain of the dashcam. It converts the images into digital video files (usually MP4 or AVI). Along with the image sensor, it is a major determinant of the quality of the final videos.
|
|
| Functions | |
Wifi allows you to view images on your phone or tablet within range of the camera (5 to 10 meters) without having to remove the SD card from the dashcam.
|
|
A dashcam with GPS records the current speed and location while filming. The speed can be displayed at the bottom of each video, this can be useful in determining the question of fault in an accident.
|
|
A dashcam with parking mode secures your car when it is parked. To use parking mode, the dashcam must be connected with a permanent power cable at the car's fuse box or to a Powerbank (see accessories).
|
|
In parking mode, a dashcam films in a way that consumes less data and power such as in Time lapse (1 picture per second), motion detection or vibration detection. The dashcam automatically switches to this mode when you turn off the car's ignition.
|
Time lapse
|
A dashcam with Cloud allows you to watch live and receive notifications of (parking) events anywhere in the world. To use Cloud, you need a SIM card with internet connection and sometimes a (paid) user account.
|
|
Loop recording allows the dashcam to keep recording continuously with a full SD card. When the SD card is full it automatically overwrites the oldest videos so that always the last trips are stored on the SD card.
|
|
The G-sensor in a dashcam records vibrations and therefore notices when a collision or incident occurs. In that case, the current recording is stored separately and securely so that it cannot be overwritten by the Loop recording.
|
|
Advanced Driver Assistant System that can warn of dangerous situations such as a rapidly approaching predecessor or undetected lane changes. Be aware that this system is never 100% reliable and due to limited input is not always effective.
|
|
| Device | |
An LCD screen makes it easy to adjust the dashcam, operate the menu and view live and saved videos. With most dashcams, the LCD screen turns off after a few minutes of driving so it is not distracting to the driver.
|
|
A dashcam with touchscreen LCD screen you operate by using your fingers on the screen like on your smartphone. A dashcam without a touchscreen is operated with buttons.
|
|
A dashcam is mounted on the windshield with a suction cup or adhesive mount. Suction cup mounts are easier to remove but slightly less durable, while adhesive mounts are sturdier and more durable but more difficult to remove.
|
Adhesive
|
The type of plug used to power the dashcam. Can be useful if you want to switch to another model of dashcam without having to reinstall the entire power supply.
|
|
A CPL filter acts like Polaroid sunglasses in front of the lens and can prevent harmful or annoying reflections. Keep in mind that it is better to remove the CPL filter at night because otherwise the videos may become too dark.
|
|
The way videos are stored in the dashcam. Most dashcams use a Micro SD card, others have built-in eMMC memory. Preferably use a new and fast SD card from a well-known brand to avoid failures.
|
|
With a Micro SD card, the storage capacity - depending on the dashcam model - can be expanded to 128gb, 256gb or even 512gb. Up to about 24 hours of FullHD or 12 hours of 4K video can be stored on a 128gb SD card.
|
32gb, 64gb, and 128gb
|
A microphone also records sound with the videos. Most dash cams allow you to turn off the microphone with the push of a button.
|
|
A dashcam is equipped with a Li-ion battery or capacitor (Super capacitor). The batteries are very small and only intended to be able to turn off the dashcam if the power fails. Therefore, a dashcam must always be connected to the power supply.
|
|
The voltage at which the dashcam can be used. Most dashcams are compatible with all cars and trucks with 12V and 24V. Always use the original included power supply or optional hardwire kit.
|
12V and 24V
|
|
420 g
|
|
|
|
|
| General | |
|
AZDome
|
|
|
€100,64 |
|
|
|
|
|
6923788073483
|
|
| Contents | |
|
|
|
Active even while your car is parked
