○ 4K 24fps ○ Wifi and GPS built-in ○ 2.4 inch LCD screen ○ Suction cup + adhesive holder Read more
€109,00 €99,00
Free extra buyer protection.
○ 4K 24fps ○ Wifi and GPS built-in ○ 2.4 inch LCD screen ○ Suction cup + adhesive holder

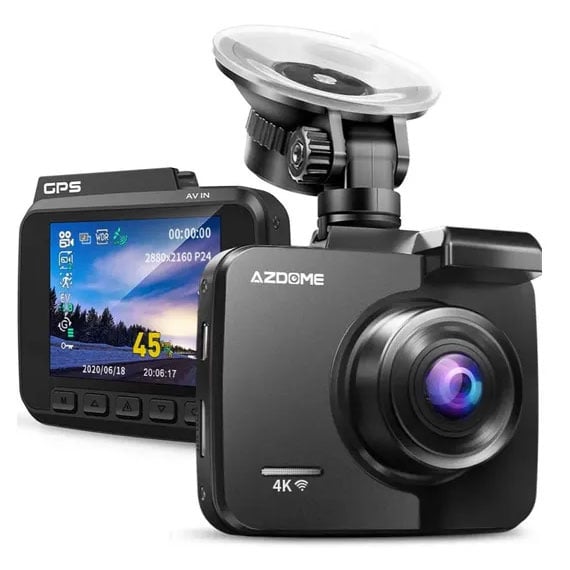

De AZDome GS63H is al jaren één van de meest populaire AZDome modellen. Deze vernieuwde versie van de GS63H is uitgerust met een 4K beeldsensor, USB-C poort en wordt geleverd met zuignap en zelfklevende houder. De AZDome GS63H heeft naast een uitmuntende beeldkwaliteit ook allerlei andere opties, zoals Wifi om beelden draadloos te bekijken en ingebouwde GPS om de snelheid en coördinaten bij te houden.
De AZDome GS63H is uitgerust met de laatste Novatek 96660 chip. In combinatie met de OV4689 4.0MP sensor filmt de camera in haarscherpe 4K (3840p*2160p) met 24fps, uniek voor dashcams. Deze chip staat bekend om zijn betrouwbaarheid en uitstekende beeldkwaliteit, ook in het donker. De HDR technologie staat garant voor een perfecte beeldkwaliteit bij alle weersomstandigheden. Tevens kunnen met de dashcam foto's in 12M pixels worden gemaakt.

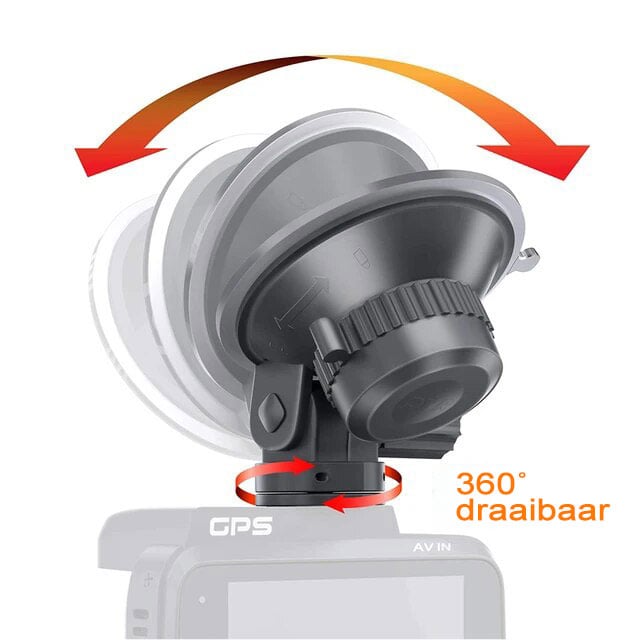

The AZDome GS63H comes with both a self-adhesive and suction cup mount, making it super easy to install. With the suction cup mount, you can easily remove the camera from the windscreen. The self-adhesive mount is slightly more secure but is permanently attached to the windscreen.
You can connect AZDome's Full HD rear camera to the GS63H to also film behind the car. The rear camera is connected to the front camera with a long cable and the images are stored simultaneously on the SD card.

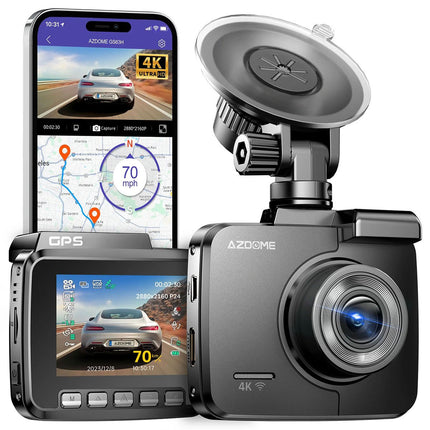

Because the AZDome GS63H is equipped with wifi, all images can be easily viewed via your smartphone. The Wifi has a range of about 10 metres. The AZDome App is available for iOS (Apple) and Android phones and tablets. The app allows you to view and download the images so that the SD card no longer needs to be removed from the camera.
The AZDome GS63H supports MicroSD cards up to 256 GB, allowing you to film for around 24 hours in Full HD.
Thanks to HDR (High Dynamic Range) technology, the camera is able to generate sharp images in both very high and very low light conditions. This allows the camera to capture razor-sharp images both during the day in bright light and at night in low light.

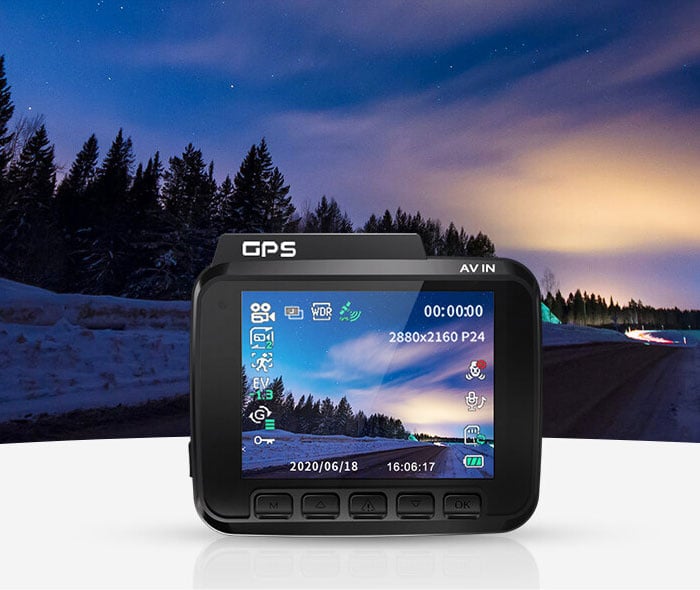

The large 2.4-inch LCD screen on the GS63H makes setting the functions a breeze. The screen also shows exactly what is being filmed, so you can adjust the dashcam.
The GS63H has a 150-degree wide-angle lens. This allows it to capture a very large area, not only in front of the car but also in the surrounding area.
The GS63H is equipped with loop recording. This means that the camera continues to film when the SD card is full. The oldest fragments on the SD card are then deleted and automatically overwritten with new images. The length of the fragments can be set to 3, 5 or 10 minutes.
The loop recording can also be turned off, in which case the camera makes one long recording. Please note that the camera will stop filming when the SD card is full.
The AZDome GS63H has a built-in GPS module. This GPS module allows the speed to be displayed on the screen and also keeps track of the coordinates of the locations where the footage was filmed. This allows you to use the included software to see exactly where certain recordings were made.
The AZDome GS63H starts filming automatically when the car is started. So you don't have to worry about it when it's in the car. The only requirement is that it is connected to the car's power supply.
The built-in G-sensor detects when you have had an accident. In the event of an impact, images are automatically saved so that they are not lost. They cannot be overwritten or deleted via the dashcam.
The GS63H has a handy parking mode function to secure your car when it is parked. In parking mode, the dashcam takes a photo every second using Time Lapse, which is played back as a fast-forward video. If there is any vibration, a regular recording is made so that you have a clear picture of the most important moments.
Please note: The automatic parking mode of the AZDome GS63H only works in combination with the optionally available AZDome JYX05 or OBD hardwire kit and cannot be switched on and off manually.
In addition to filming, the AZDome also has the option of taking photos in 16 megapixels. This is useful for recording damage after an accident, for example.
The AZDome GS63H has a built-in microphone so that sound is also recorded. The microphone can also be turned off if desired.
The current time and date are always displayed on the screen so that you can later see when the recordings were made.
| Image | |
|---|---|
 ChannelsThe number of cameras or “channels” the dashcam uses to film. A 1-channel 1CH dashcam films only the front and a 2CH also has a rear camera. A 3CH has an additional interior camera and a 4CH dashcam often consists of four separate cameras.
|
1CH and 2CH
|
 ResolutionVideo resolution indicates how many pixels the videos consist of. Therefore, the higher the resolution, the larger the videos are and the more details can be seen. For example, 4K refers to the number of horizontal pixels (3840) of the video.
|
Full HD, 2K, and 4K
|
 Night visionThe quality of video at night or in low light conditions is mainly determined by the image sensor used in the dashcam. Some dashcams also have infrared LEDs, but these are mainly effective at short distances for interior cameras, for example.
|
|
 Viewing angleDashcams always have a round “fish eye” lens with a wide viewing angle so that a larger area around the camera is recorded. So a wider viewing angle means you capture more but also results in some distortion at the sides.
|
|
 Image sensorThe image sensor used determines the resolution of the videos and is the biggest determinant of dashcam image quality.
|
|
 ProcessorThe chip or processor is basically the computer or brain of the dashcam. It converts the images into digital video files (usually MP4 or AVI). Along with the image sensor, it is a major determinant of the quality of the final videos.
|
|
| Functions | |
 WifiWifi allows you to view images on your phone or tablet within range of the camera (5 to 10 meters) without having to remove the SD card from the dashcam.
|
|
 GPSA dashcam with GPS records the current speed and location while filming. The speed can be displayed at the bottom of each video, this can be useful in determining the question of fault in an accident.
|
|
 Parking modeA dashcam with parking mode secures your car when it is parked. To use parking mode, the dashcam must be connected with a permanent power cable at the car's fuse box or to a Powerbank (see accessories).
|
|
 Parking mode typesIn parking mode, a dashcam films in a way that consumes less data and power such as in Time lapse (1 picture per second), motion detection or vibration detection. The dashcam automatically switches to this mode when you turn off the car's ignition.
|
Vibration detection and Time lapse
|
 CloudA dashcam with Cloud allows you to watch live and receive notifications of (parking) events anywhere in the world. To use Cloud, you need a SIM card with internet connection and sometimes a (paid) user account.
|
|
 Loop recordingLoop recording allows the dashcam to keep recording continuously with a full SD card. When the SD card is full it automatically overwrites the oldest videos so that always the last trips are stored on the SD card.
|
|
 G-sensorThe G-sensor in a dashcam records vibrations and therefore notices when a collision or incident occurs. In that case, the current recording is stored separately and securely so that it cannot be overwritten by the Loop recording.
|
|
 ADASAdvanced Driver Assistant System that can warn of dangerous situations such as a rapidly approaching predecessor or undetected lane changes. Be aware that this system is never 100% reliable and due to limited input is not always effective.
|
|
| Device | |
 LCD displayAn LCD screen makes it easy to adjust the dashcam, operate the menu and view live and saved videos. With most dashcams, the LCD screen turns off after a few minutes of driving so it is not distracting to the driver.
|
|
 LCD size |
|
 TouchscreenA dashcam with touchscreen LCD screen you operate by using your fingers on the screen like on your smartphone. A dashcam without a touchscreen is operated with buttons.
|
|
 Mount typeA dashcam is mounted on the windshield with a suction cup or adhesive mount. Suction cup mounts are easier to remove but slightly less durable, while adhesive mounts are sturdier and more durable but more difficult to remove.
|
Adhesive and Suction Cup
|
 Plug typeThe type of plug used to power the dashcam. Can be useful if you want to switch to another model of dashcam without having to reinstall the entire power supply.
|
|
 CPL filter optionA CPL filter acts like Polaroid sunglasses in front of the lens and can prevent harmful or annoying reflections. Keep in mind that it is better to remove the CPL filter at night because otherwise the videos may become too dark.
|
|
 Memory typeThe way videos are stored in the dashcam. Most dashcams use a Micro SD card, others have built-in eMMC memory. Preferably use a new and fast SD card from a well-known brand to avoid failures.
|
|
 SD supportWith a Micro SD card, the storage capacity - depending on the dashcam model - can be expanded to 128gb, 256gb or even 512gb. Up to about 24 hours of FullHD or 12 hours of 4K video can be stored on a 128gb SD card.
|
32gb, 64gb, 128gb, and 256gb
|
 MicrophoneA microphone also records sound with the videos. Most dash cams allow you to turn off the microphone with the push of a button.
|
|
 BatteryA dashcam is equipped with a Li-ion battery or capacitor (Super capacitor). The batteries are very small and only intended to be able to turn off the dashcam if the power fails. Therefore, a dashcam must always be connected to the power supply.
|
|
 PowerThe voltage at which the dashcam can be used. Most dashcams are compatible with all cars and trucks with 12V and 24V. Always use the original included power supply or optional hardwire kit.
|
12V and 24V
|
 Weight |
480 g
|
 Dimensions |
|
| General | |
 Brand |
AZDome
|
 Price |
€99,00
|
 Warranty |
|
 EAN barcode |
6973888261600
|
| Contents | |
 In the box |
|
 | |
|---|---|
| Image | |
| Channels The number of cameras or “channels” the dashcam uses to film. A 1-channel 1CH dashcam films only the front and a 2CH also has a rear camera. A 3CH has an additional interior camera and a 4CH dashcam often consists of four separate cameras.
|
1CH and 2CH
|
| Resolution Video resolution indicates how many pixels the videos consist of. Therefore, the higher the resolution, the larger the videos are and the more details can be seen. For example, 4K refers to the number of horizontal pixels (3840) of the video.
|
Full HD, 2K, and 4K
|
| Night vision The quality of video at night or in low light conditions is mainly determined by the image sensor used in the dashcam. Some dashcams also have infrared LEDs, but these are mainly effective at short distances for interior cameras, for example.
|
|
| Viewing angle Dashcams always have a round “fish eye” lens with a wide viewing angle so that a larger area around the camera is recorded. So a wider viewing angle means you capture more but also results in some distortion at the sides.
|
|
| Image sensor The image sensor used determines the resolution of the videos and is the biggest determinant of dashcam image quality.
|
|
| Processor The chip or processor is basically the computer or brain of the dashcam. It converts the images into digital video files (usually MP4 or AVI). Along with the image sensor, it is a major determinant of the quality of the final videos.
|
|
| Functions | |
| Wifi Wifi allows you to view images on your phone or tablet within range of the camera (5 to 10 meters) without having to remove the SD card from the dashcam.
|
|
| GPS A dashcam with GPS records the current speed and location while filming. The speed can be displayed at the bottom of each video, this can be useful in determining the question of fault in an accident.
|
|
| Parking mode A dashcam with parking mode secures your car when it is parked. To use parking mode, the dashcam must be connected with a permanent power cable at the car's fuse box or to a Powerbank (see accessories).
|
|
| Parking mode types In parking mode, a dashcam films in a way that consumes less data and power such as in Time lapse (1 picture per second), motion detection or vibration detection. The dashcam automatically switches to this mode when you turn off the car's ignition.
|
Vibration detection and Time lapse
|
| Cloud A dashcam with Cloud allows you to watch live and receive notifications of (parking) events anywhere in the world. To use Cloud, you need a SIM card with internet connection and sometimes a (paid) user account.
|
|
| Loop recording Loop recording allows the dashcam to keep recording continuously with a full SD card. When the SD card is full it automatically overwrites the oldest videos so that always the last trips are stored on the SD card.
|
|
| G-sensor The G-sensor in a dashcam records vibrations and therefore notices when a collision or incident occurs. In that case, the current recording is stored separately and securely so that it cannot be overwritten by the Loop recording.
|
|
| ADAS Advanced Driver Assistant System that can warn of dangerous situations such as a rapidly approaching predecessor or undetected lane changes. Be aware that this system is never 100% reliable and due to limited input is not always effective.
|
|
| Device | |
| LCD display An LCD screen makes it easy to adjust the dashcam, operate the menu and view live and saved videos. With most dashcams, the LCD screen turns off after a few minutes of driving so it is not distracting to the driver.
|
|
| LCD size |
|
| Touchscreen A dashcam with touchscreen LCD screen you operate by using your fingers on the screen like on your smartphone. A dashcam without a touchscreen is operated with buttons.
|
|
| Mount type A dashcam is mounted on the windshield with a suction cup or adhesive mount. Suction cup mounts are easier to remove but slightly less durable, while adhesive mounts are sturdier and more durable but more difficult to remove.
|
Adhesive and Suction Cup
|
| Plug type The type of plug used to power the dashcam. Can be useful if you want to switch to another model of dashcam without having to reinstall the entire power supply.
|
|
| CPL filter option A CPL filter acts like Polaroid sunglasses in front of the lens and can prevent harmful or annoying reflections. Keep in mind that it is better to remove the CPL filter at night because otherwise the videos may become too dark.
|
|
| Memory type The way videos are stored in the dashcam. Most dashcams use a Micro SD card, others have built-in eMMC memory. Preferably use a new and fast SD card from a well-known brand to avoid failures.
|
|
| SD support With a Micro SD card, the storage capacity - depending on the dashcam model - can be expanded to 128gb, 256gb or even 512gb. Up to about 24 hours of FullHD or 12 hours of 4K video can be stored on a 128gb SD card.
|
32gb, 64gb, 128gb, and 256gb
|
| Microphone A microphone also records sound with the videos. Most dash cams allow you to turn off the microphone with the push of a button.
|
|
| Battery A dashcam is equipped with a Li-ion battery or capacitor (Super capacitor). The batteries are very small and only intended to be able to turn off the dashcam if the power fails. Therefore, a dashcam must always be connected to the power supply.
|
|
| Power The voltage at which the dashcam can be used. Most dashcams are compatible with all cars and trucks with 12V and 24V. Always use the original included power supply or optional hardwire kit.
|
12V and 24V
|
| Weight |
480 g
|
| Dimensions |
|
| General | |
| Brand |
AZDome
|
| Price |
€99,00
|
| Contents | |
| In the box |
|
